    DESCRIPTION

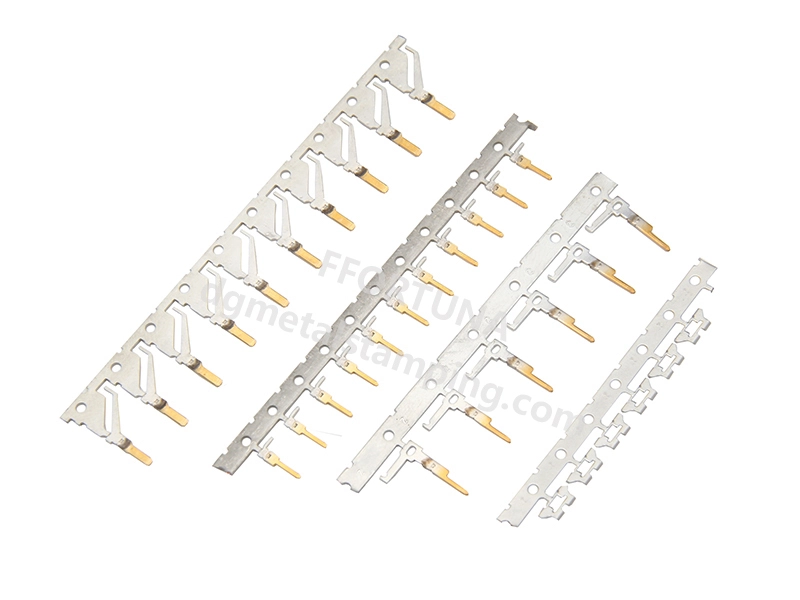

    Specifciation of Partial gold plated lead frame:


    ★  The raw material for lead frame is C17200 with excellent electrical conductivity.The product needs to be stamped before plating. The thickness is 0.30mm.



    ★ In order to meet the mechanical properties and cost savings, the lead frame needs to be partially gold plated after stamping.

    ★ The lead frame is a thin metal frame to which the semiconductor is attached during package assembly. The quality of the lead frame is critical: any minor defect can seriously compromise the performance and reliability of the final IC device.

    ★ No pollution to environment. Part complies with RoHS.
    ★ The stamping speed is around 300-500 times/ min.

    At Dogguan Fortuna, we can customize progressive dies for such parts according to customer requirements and drawing parameters. We spare no effort to meet high speed production and provide our customers with quality quantities.



    Partial gold plated lead frame 2

    PRODUCT PARAMETERS

    Parameter of Partial gold plated lead frame

    Place of Origin

    Guangdong, China (Mainland)

    Application

    New energy

    Material

    C17200

    Surfacetreatment

    gold plating

    Size

    45*38*25mm

    Usage

    connecting

    Color

    golden

    Special

    OEM/ODM is welcome

    Certificate

    IATF16949 ISO14001 SGS RoHS

    Other

    N/A

    Packaging & Delivery

    Single package size

    55*48*35 cm

    Package Type

    Plastic tray and exported carton

    Single gross weight

    13 kg

    Lead Time

    15 days

    PRODUCT ADVANTAGES

    Description and advantage of Partial gold plated lead frame

    Partial gold plated lead frame 3
    1
    Metal stamping lead frame for connector can be quickly disassembled and replaced.
    Partial gold plated lead frame 4
    2
    The products realize signal transmission and electrical conduction.
    Partial gold plated lead frame 5
    3
    Low maintenance cost.
    Partial gold plated lead frame 6
    4
    Product structure is complex to achieve better functional effects.
    Partial gold plated lead frame 7
    5
    The product is widely used, and product conducts electricity very well
    Partial gold plated lead frame 8
    6
    These lead frames are widely used in the field of electric vehicles, signals, pneumatic connections and some fixed mounting brackets.

    QUALITY CONTROL

    Our quality team uses high-precision instruments to inspect the product every hour to meet the accuracy and yield requirements of the product.

    Partial gold plated lead frame 9
    RoHS Tester & Plating Thickness Tester
    Partial gold plated lead frame 10
    IM One-click measuring instrument
    Partial gold plated lead frame 11
    Height gauge
    Partial gold plated lead frame 12
    Micrometer & Caliper
    Partial gold plated lead frame 13
    Tool microscope
    Partial gold plated lead frame 14
    Projector

    PACKING

    Based on the product's structural process, product weight, shipping requirements and customer requirements, our process engineers will evaluate the right packaging solutions for the product, which are fully compliant with all shipping conditions and modes of transport. The main packaging methods include bulk packaging, plastic pallet packaging, carrier tape packaging and reel packaging.

    Partial gold plated lead frame 15
    Reel packaging
    Partial gold plated lead frame 16
    Kraft packaging
    Partial gold plated lead frame 17
    Plastic tray packaging
    Partial gold plated lead frame 18
    Carrier tape packaging
    Partial gold plated lead frame 19
    Bulk packaging
    Partial gold plated lead frame 20
    Pallet packaging
